AINKJET 6042A UV DTF

The charming A-6042AUV multi-functional flatbed printer can be used for not only sheet fed but also objects with non-flat surfaces, such as glass bottles, water cups, personalized mobile phone cases, gifts, promotional souvenirs, etc.Suitable for printing on: flat or cylindrical objects such as mobile phone case, metal, acrylic, plastic, PVC, glass, ceramics, wood, leather, etc
AINKJET UV DTF MULTIFUNCTION FLATBED PRINTER
A-6042A
Special for UV DTF Flatbed Printing, Most advanced and latest printing technology

Parameter

Print Head: EPSON i1600-U1
Max Print Size: 600mm*420mm
Media Thickness : ≤1800mm
Finish Printing an A2 sheet : 10mins
Ink Type: UV Curing Ink

Feature

UV DTF Printing - The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing. UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.
Download
Multifunctional
UV Flatbed Printer

AINKJET UV Flatbed Printer
The charming AINKJET multi-functional flatbed printer can be used for not only sheet fed but also objects with non-flat surfaces, such as glass bottles, water cups, personalized mobile phone cases, gifts, promotional souvenirs, etc.Suitable for printing on: flat or cylindrical objects such as mobile phone case, metal, acrylic, plastic, PVC, glass, ceramics, wood, leather, etc
The New Upgrade
We continuously improve and upgrade according to customer feedback, AINKJET series is our best rebate for customer feedback, More UV faltbed format options.
Humanized Design
AINKJE series is created for anyone within the printing industry Be it beginner or expert AINKJET series will accommodate any needs required by its owner. From super easy startup to the state of the art RIP software, with AINKJET UV flatbed printer anyone can create outstanding print jobs with minimal effort.
HIGH OUALITY UV AND VARNISH INK
AINKJET UV inks are specially developed to ensure vivid colors and maximum fastness on wide range of hard materials. Varnish printing application presents more personalized solution requirements .
RELIABLE UV PRINTING SOLUTION
Every component in AINKJET UV printer is designed to last -High precision timing components On demand Piezzo print head Durable ink components -Sturdy exterior





CONTACT NOW
New Feature of UV DTF Flatbed Printer
We have an excellent technical team, which can be designed according to customers requirements.
  • 01
    4 Colors + White & Varnish Are More Expressive
    Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs.
  • 02

    Print Varnish And 3D Relief Effects

    ​​​​​​​
    The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish.
  • 03
    High-Performance Inks For A Variety Of Applications
    It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion.
SPECIAL UV DTF PRINTING SOLUTION
UV DTF PRINTER With the rapid development of science and technology, people have shown unprecedented progress in the processing and presentation of image patterns.In order to meet the personalized demands of users and meet the needs of designers, UV flatbed printer has emerged as the times require, and its patterns are realistic and layered. The advantages of richness, high artistry, and strong stereoscopic effect make UV flatbed printer the first choice for hot image output.

UV DTF PRINTING SOLUTION
UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market
- UV Direct Print Effect
- No Heating Process Required
- No Drying Process Required
- Good Adhesion on Curved, or Rugged Surface

AINKJET DTF supports wide range of printing supplies
Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.


AINKJET UV DTF INKS

All our UV DTF inks are specially developed and test to ensure
vivid colors and maximum fastness
- Scratch resistant
- Vivid colors

UV INK
UV DTF APPLICATION

Epson i1600-U1 Print Head


PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can
realize high precision and high density (600 npi/2 rows of nozzles). Contributes to
compact, high speed, high quality, and high image quality. b. Precision made of Epson
unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are
placed accurately and consistently.

Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead
is suitable for UV inks. It is unlocked.

dtg喷头2
 /Model I1600-U1 / I3200 optional
Compatible ink UV Ink
Dimensions(WidthxDepthx Height) 69.1mm x 59.4mm x 35.6mm
Weight(g) 60
Nozzle Numbers 1600
Length Between Nozzles(inch) 1/300
Nozzle Row 4 rows
Max color/head 4 colors
Resolution 300dpi/row, 600dpi/2row
Effective Printing Width(mm) 33.8
Droplet
ejection
performance(kHz)		 Binary 5 pl（43.2kHz）
3 levels
grey scale		 6,12.5 pl（21.6kHz）
4 levels
 grey scale		 3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s) 5-7 mPa･s

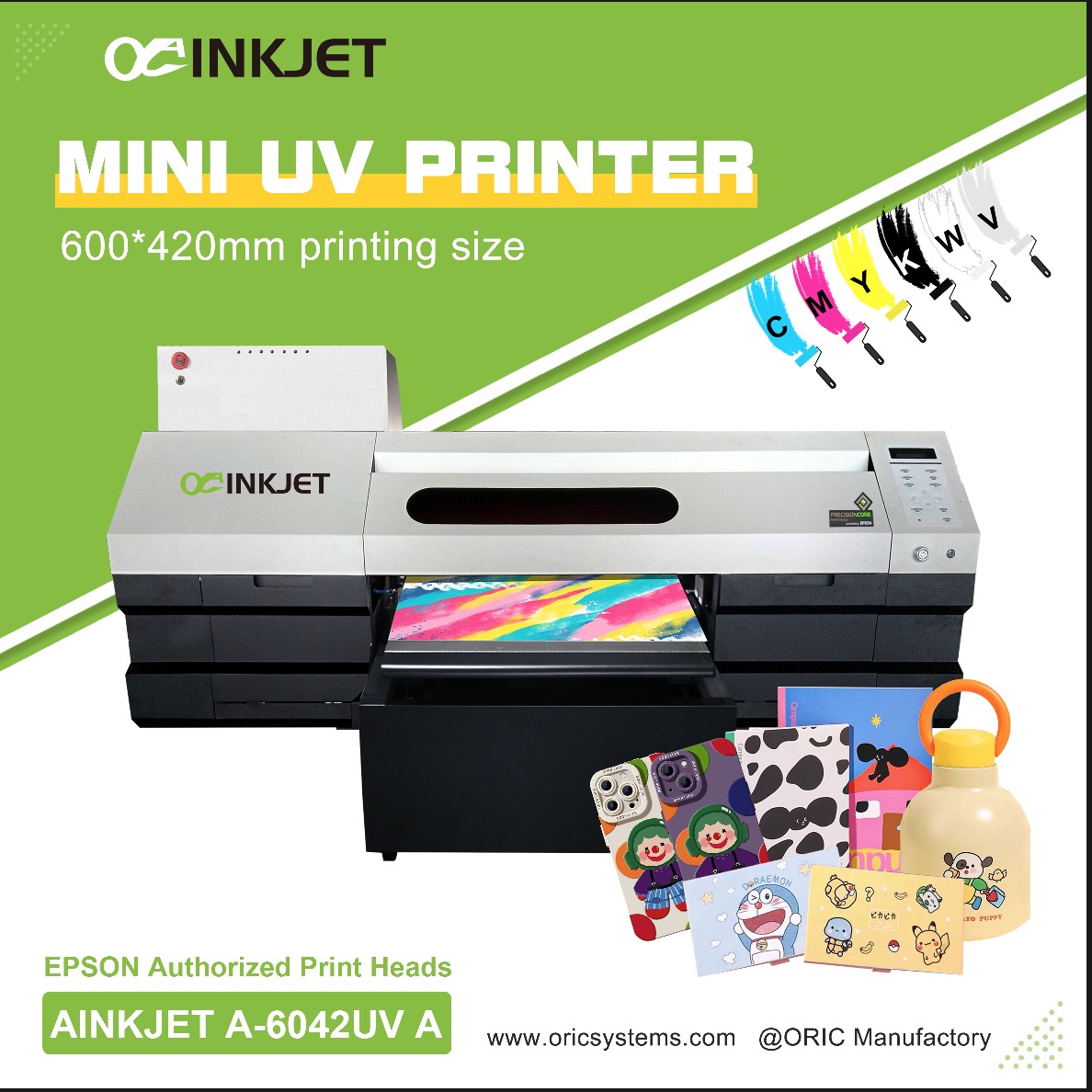

A-6042A Multifunctional UV Flatbed Printer
Printing Technology   Double i1600-U1 / i3200-U1 Print Heads
Print Head   Piezoelectric Inkjet
Printing Width   600*420(mm)
Acceptable Media Width ≤600(mm)
Thickness ≤1800(mm)
Ink Cartridges Capacity Color Siphon + Regular Mixing of White Ink
Color W+CMYK+Varnish
Printing Resolution   Maximum 2400 dpi
Speed   720x900dpi （Finish Printing an A2 sheet in 10 mins）
Ink Curing Method   Dual UV LED Lights
Power   1300W
Interface   Gigabit Ethernet
Power Supply   AC 220V ± 5%, 16A 50HZ ±1
Dimensions(with stand)   61.88(W)x37.8(D)x36.4(H) in.
  ( 1572(W)x960(D)x925(H) mm )
Weight(with stand)   441 lb. (200 kg)
Environment Power on Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation)
Power off Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation)
  •
  • Technical Specifications
  •

Safety structure design

The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality.

Smart operation

High quality output, simple and efficient operation OR-6042UVA multifunctional flatbed contains many advanced functions to complete high-quality printing jobs with simple operations.

Suction platform

High precision vacuum flatbed made of aluminum alloy with a turbofan installed below can fix the media firmly.

Automatic height measurement

Up to 1800mm media thickness. The beam can rise to 180mm to print customized products.

UV DTF Printing Working Process

 Design Pattern
Use photoshop, illustrator or other software to design your pattern.


 Print Your Design On A Film
Adjust the printer parameters in the RIP software and use our UV DTF printer and ink to print your pattern on A film.


 Lamination
Laminate A film with B film

 Cut & Transfer Film On Products
Cut the image and stick on substrates, repeat pressing the pattern and then slowly peel the film and finish.

Applications of
UV DTF Printer
Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer,and works well on various materials,such as plastic,glass,metal,ceramics,leather,wood,and other soft or hard materials.
 Plastic                              Glass
 Ceramics                          Metal
 Leather                            Glass stickers
 Wood                               Packibg box
 and other soft or hard materials.......


Applications Of Flatbed UV Printer

  • PVC Card

    PVC Card
  • Canvas

    Canvas
  • Wood

    Wood
  • Metal

    Metal
  • Ceramics

    Ceramics
  • Glass

    Glass
  • Stainless steel

    Stainless steel
  • PVC Board

    PVC Board
  • Leather

    Leather
  • Acrylic crystal

    Acrylic crystal
  • Soft silicone

    Soft silicone
  • PET film

    PET film
Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
