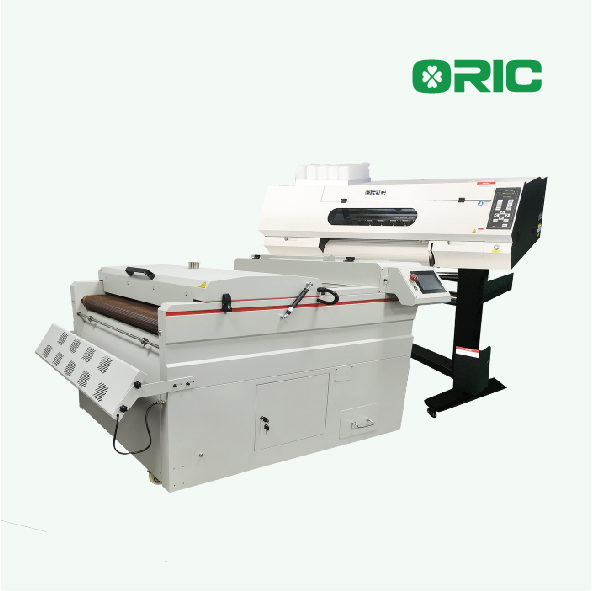

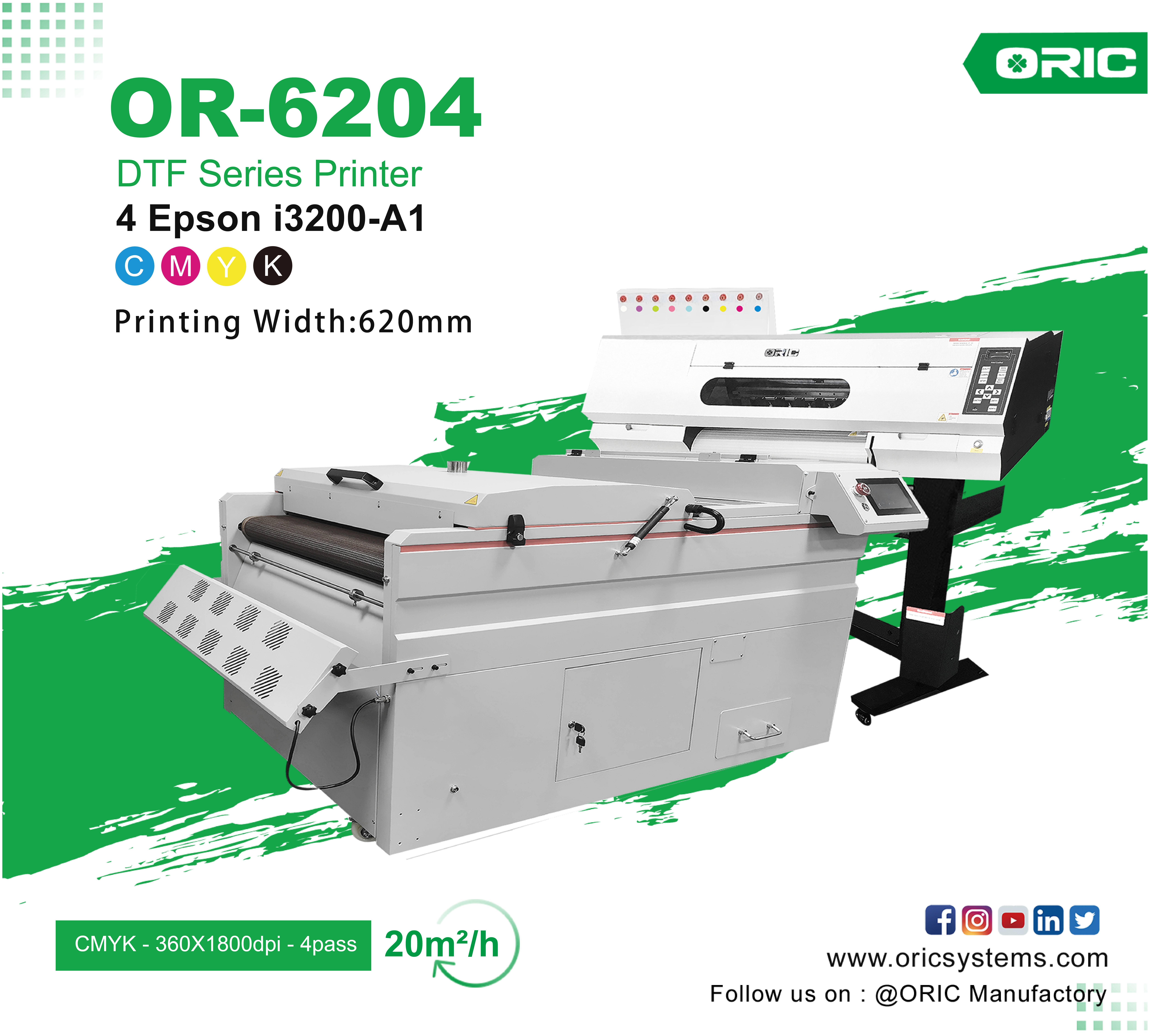

HIGH SPEED DTF DIGITAL PRINTER OR-6204 DTF

High Speed Direct to Film Comprehensive Solution With Belt System

Parameter
Print Head: Dual Epson PrecisionCore™ I3200 print heads.
Max Print Size: 620 Print Width.
Print Speed: 20m2/h - 4pass printing
Colors : CMYK + W
Belt Systems Power Shaker Machine


Feature
4heads DTF creating a new digital dtf film printing process. It makes up for the shortcomings of the existing dtf technology. The max print width 24inch. Max print speed upto 20m2/h, easily get bulk orders.
Availability:

PDF Export

Printer Heads

V

Epson Inkjet Head - i3200-A1

The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers

Product Specifications:
Product name EPSON i3200-A1
Ink Type Aqueous
Type PrecisionCore MicroTFP printhead
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)
B781EE34-1F19-4F79-AECF-6DD9FD80F6CE

* Four I3200 Print Heads Speed

360x1800dpi - 4pass              20 m²/h


720x1200dpi - 6pass               14 m²/h




Technical Specifications

Technical Specifications

T-shirt Digital Heat Transfer Printing Machine
Model
OR-6204
Print Head
4 I3200 Print Heads Optional
Printing Technology
Piezoelectric Inkjet
Acceptable MediaWidth620 mm
ThicknessMaximum 39 mil(1 mm)
Printing Width
600 mm
Ink CartridgesTypeTransfer Pigment Ink
CapacityContinual Ink Supply System ( 220ML )
ColorCMYK + W
Applicable Medium
Transfer film
Color Manage
ICC or density curve
Media Heating System
Powder & color fixing machine
Interface
RJ-45/LAN
RIP Software
Main top
Power Supply
50HZ/60HZ,220V/110V/10A
EnvironmentTemperature22℃ to 28℃
Humidity40% to 70%
Printer Dimensions(With Stand)
L1620mm*W620mm*H1280mm
Packing Dimensions
L1700mm*W700MM*H720mm
Weight
G.W : 230kg N.W :180kg
Shaking Powder and Color Fix Machine
ModelH6501
Media Width0-600mm
Applicable MediumNylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder ControlPowder shake control, powder control, powder direction and volume control
Heating & Drying FunctionMulti-stage heating system, drying, cold air fan function
Rewind FunctionAutomatic induction winding
Electrical ParametersRated Voltage: 220V            Rated Current: 20A
Rated Power: 3.42KW          Power Consumption: 1KW-2.5KW
Packing Size & WeightStandard with 2heads : 1800* 1130* 1150mm
G.W: 300kg       N.W: 190kg


Working Process

Working Process Videos

Working Process


▼ Design Pattern

Use photoshop, illustrator or other software to design your pattern.

▼ Print Your Design

Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.

▼ Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

▼ Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.


Features

Feature of OR-6204

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.
q1-1920-1920

THK high-precision  mute rail.

q2-1920-1920

Stable bulk system ensures  amazing printing speed.


q3-1920-1920

High-quality hot-melt  powder, can be used  repeatedly.

q4-1920-1920

Efficient powder shaking  device, powder shaking is clean.

q5-1920-1920

Flip top powder box,  simple operation,  convenient to add powder.

q6-1920-1920 With belt system, you can cut off files, while printing. Since the film is fed by air suction system. And cut production at the same time.


Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique .

 T-shirt                       Denim/Jeans
 Canvas                      Hoodies
 Backpacks.               Lanyards
Shoes                         Gift Bags
Baseball Caps            Fabric Gift Boxes
 Sweaters and more......



Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts,and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
