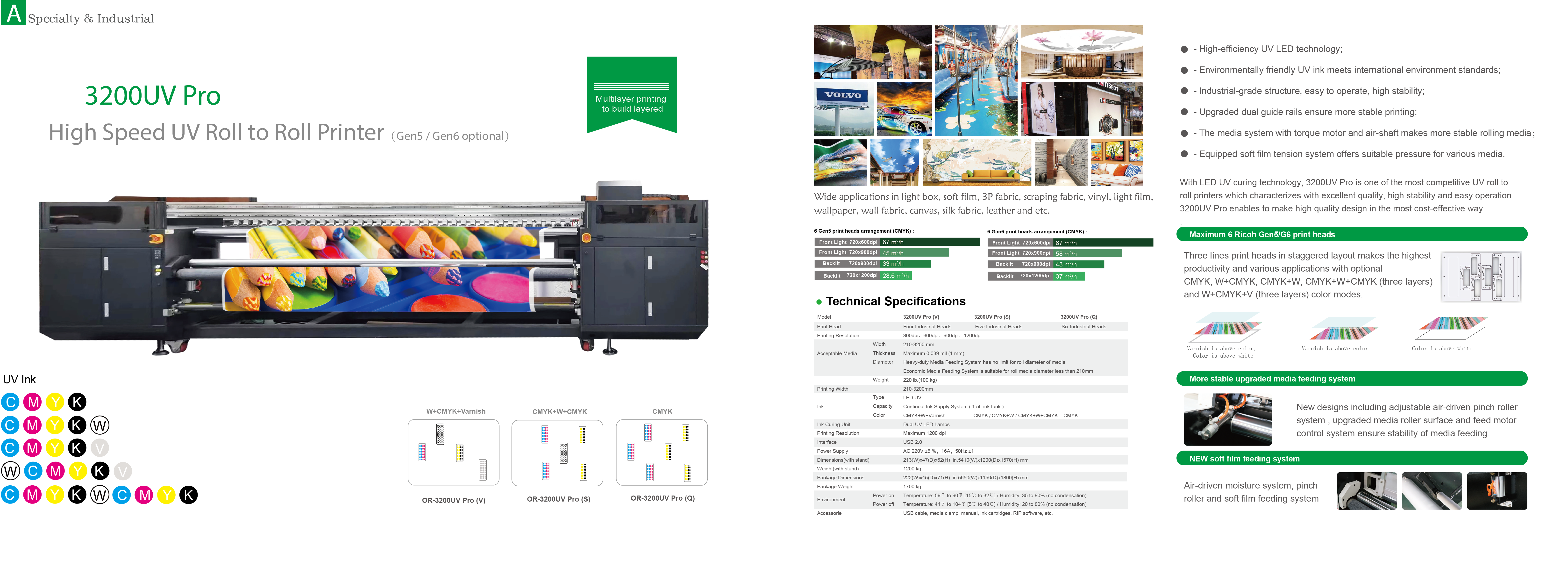

OR-3200UV Pro 3.2m UV Roll To Roll Printer

Parameter
Print Head: 4/5/6 Industrial heads optional
Max Print Size: 3250mm
Colors : CMYK+W+Varnish
CMYK/CMYK+W1CMYK+W+CMYK
CMYK

Feature
High Speed UV Roll to Roll Printer (Gen5 /Gen6 optional)
  • OR-3200UV PRO

  • ORIC

Availability:

PDF Export

Printer Heads

微信截图_20231008155040


Product Specifications:
Method Piston pusher with metallic diaphragm plate
Print Width 54.1 mm(2.1")
Number of nozzles 1,280 (4 × 320 channels), staggered
Nozzle spacing (4 color printing) 1/150"(0.1693 mm)
Nozzle spacing (Row to row distance) 0.55 mm
Nozzle spacing (Upper and lower swath distance) 11.81mm
Compatible ink UV, Solvent, Aqueous, Others
Total printhead dimensions 89(W) × 69(D) × 24.51(H) mm (3.5" × 2.7" × 1.0") excluding cables & connectors
Weight 155 g
Max.number of color inks 2 colors
4 colors
Operating temperature range Up to 60℃
Temperature control Integrated heater and thermistor
Jetting frequency Binary mode : 30kHz / Grey-scale mode : 20kHz
Drop volume Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
Viscosity range 10-12 mPa•s
Surface tension 28-35mN/m
Grey-scale 28-35mN/m 4 levels
Total Length 248 mm (standard) including cables
Ink port Yes
Number of ink ports MH5420 : 2 × dual ports / MH5440 : 4 × dual ports
Alignment pin direction Front (standard)

* 6 Gen5 print heads arrangement(CMYK)

Front Light 720x600dpi              67 m²/h

Front Light 720x900dpi              45 m²/h

Backlit 720x900dpi                   33 m²/h

Backlit 720x900dpi                      28.6 m²/h




Technical Specifications


Technical Specifications
Model3200UV Pro(V)3200UV Pro (S)3200UV Pro (Q)
Print HeadFour Industrial HeadsFive Industrial HeadsSix Industrial Heads
Printing Resolution300dpi、600dpi、900dpi、1200dpi
Acceptable MediaWidth210-3250(mm)
ThicknessMaximum 0.039 mil (1 mm)
DiameterHeavy-duty Media Feeding System has no limit for roll diameter of media

Economic Media Feeding System is suitable for roll media diameter less than 210mm

Weight220 lb.(100 kg)
Printing Width210-3200mm
ink
Type
LED UV

Capacity
Continual Ink Supply System ( 1.5L ink tank )

Color
CMYK+W+Varnish  CMYK/CMYK+W1CMYK+W+CMYK  CMYK
Ink Curing UnitDual UV LED Lamps
Printing ResolutionMaximum 1200 dpi
InterfaceUSB 2.0
Power Supply
Dimensions(with stand)213(W)x47(D)x62(H) in.5410(W)x1200(D)x1570(H)mm
Weight(with stand)1200kg
Package Dimensions222(W)x45(D)x71(H) in.5650(W)x1150(D)x1800(H)mm
Package Weight1700kg
EnvironmentPower onTemperature: 59 ℉to 90 ℉[15 ℃ to 32 ℃]/ Humidity: 35 to 80% (no condensation)
Power offTemperature: 41 ℉to 104 ℉[15 ℃ to 32 ℃]/ Humidity: 35 to 80% (no condensation)
AccessorieUSB cable, media clamp, manual, ink cartridges, RIP software, etc.


Application


3200uv4




Wide applications in light box, soft film, 3P fabric, scraping fabric, vinyl, light film,wallpaper, wall fabric, canvas, silk fabric, leather and etc.




  • - High-efficiency UV LED echnology ;


  • - Environmentally friendly UV ink meets international environment standards ;


  • - Industrial-grade structure, easy to operate, high stability;


  • - Upgraded dual guide rails ensure more stable printing;


  • - The media system with torque motor and air-shaft makes more stable rolling media ;


  • - Equipped soft film tension system offers suitable pressure for various media ;



With LED UV curing technology, 3200UV Pro is one of the most competitive UV roll toroll printers which characterizes with excellent quality, high stability and easy operation.3200UV Pro enables to make high quality design in the most cost-effective way



微信截图_20231008160829


Maximum 6 Ricoh Gen5/G6 print heads



Three lines print heads in staggered layout makes the highestproductivity and various applications with optionalCMYK,W+CMYK,CMYK+W,CMYK+W+CMYK (three layers)and W+CMYK+V (three layers) color modes.


微信截图_20231008160917

微信截图_202310081609178


More stable upgraded media feeding system



New designs including adjustable air-driven pinch rollersystem , upgraded media roller surface and feed motorcontrol system ensure stability of media feeding


微信截图_202310081609179


NEW soft film feeding system



Air-driven moisture system, pinchroller and soft film feeding system



Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts,and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
