You are here: Home » AINKJET 600 Super UV DTF

UV DTF Film meets the multifunctional printing created by ORIC Manufactory. It is constructed with new technology, such as the use of two films A and B together, without heating and powder shaking.It can not only print on flat, wood, ceramic, glass, metal, acrylic and other materials, but also print on bent and cylindrical objects, and output a good 3D texture, high color fastness and scratch resistance Printing effect.

AINKJET Hybrid UV DTF Printer

A-600 Super

New technology UV DTF print in roll ,cold transfer on all materials,

Parameter

Print Head: EPSON i1600-U1
Max Print Width ：≤600(mm)
Media Thickness : ≤1.5(mm)

Printing Speed : 8pass (720x1200dpi) 7m²/h
Ink Type: UV Curing Ink

Feature

UV DTF Printing - The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing. UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.

Download

UV Crystal Label Printer

Upgraded - AB Film roll to roll printing machine

AINKJET UV DTF Printer
The charming AINKJET multifunctional UV DTF printer can be used not only for printing of flat items, but also for non-flat objects, such as glass bottles, water cups, gifts of the opposite sex, promotional souvenirs, etc.Suitable for surface decoration of various materials such as plastic, glass, wood, metal ect.,

The New Upgrade
We continuously improve and upgrade according to customer feedback, AINKJET series is our best rebate for customer feedback, More UV series printer options.

Humanized Design
AINKJE series is created for anyone within the printing industry Be it beginner or expert AINKJET series will accommodate any needs required by its owner. From super easy startup to the state of the art RIP software, with AINKJET UV DTF printer anyone can create outstanding print jobs with minimal effort.

HIGH OUALITY UV AND VARNISH INK
AINKJET UV inks are specially developed to ensure vivid colors and maximum fastness on wide range of all kinds materials. Varnish printing application presents more personalized solution requirements .

RELIABLE UV PRINTING SOLUTION
Every component in AINKJET UV printer is designed to last
-High precision timing components on demand piezzo print head
- Durable ink components
-Sturdy exterior

New Feature of UV DTF Printer

We have an excellent technical team, which can be designed according to customers requirements.

01

4 Colors + White & Varnish Are More Expressive

Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs.
02

Print Varnish And 3D Relief Effects

The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish.
03

High-Performance Inks For A Variety Of Applications

It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion.

SPECIAL UV DTF PRINTING SOLUTION

UV DTF PRINTER With the rapid development of science and technology, people have shown unprecedented progress in the processing and presentation of image patterns.In order to meet the personalized demands of users and meet the needs of designers, UV flatbed printer has emerged as the times require, and its patterns are realistic and layered. The advantages of richness, high artistry, and strong stereoscopic effect make UV flatbed printer the first choice for hot image output.

UV DTF PRINTING SOLUTION

UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market

- UV Direct Print Effect

- No Heating Process Required

- No Drying Process Required

- Good Adhesion on Curved, or Rugged Surface

AINKJET DTF supports wide range of printing supplies

Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.

AINKJET UV DTF INKS

All our UV DTF inks are specially developed and test to ensure

vivid colors and maximum fastness

- Scratch resistant

- Vivid colors

UV INK

UV DTF APPLICATION

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can

realize high precision and high density (600 npi/2 rows of nozzles). Contributes to

compact, high speed, high quality, and high image quality. b. Precision made of Epson

unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are

placed accurately and consistently.

Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead

is suitable for UV inks. It is unlocked.

dtg喷头2

/Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

A-6042A Multifunctional UV Flatbed Printer
Printing Technology		Three i1600-U1 / i3200-U1 Print Heads
Print Head		Piezoelectric Inkjet
Acceptable Media	Width	≤600(mm)
Acceptable Media	Thickness	≤1.5(mm)
Ink Cartridges	Capacity	Color Siphon + Regular Mixing of White Ink
Ink Cartridges	Color	W+CMYK+Varnish
Printing Resolution		Maximum 2400 dpi
Speed		8pass (720x1200dpi) 7m²/h
Ink Curing Method		Dual UV LED Lights
Power		3500W
Interface		Gigabit Ethernet
Power Supply		AC 220V ± 10%, 50/60 HZ
Dimensions(with stand)		69.76(W)x28.6(D)x55.9(H) in.
Dimensions(with stand)		( 1772(W)x927(D)x1420(H) mm )
Weight(with stand)		441 lb. (200 kg)
Environment	Power on	Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation)
Environment	Power off	Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation)

Technical Specifications

Safety structure design

The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality.

Smart operation

High quality output, simple and efficient operation A-600 Super multifunctional flatbed contains many advanced functions to complete high-quality printing jobs with simple operations.

Laminating device

Comes with a laminating system, realizes the function of laminating while printing, easily reduces manual operations, and can print a whole roll of A film with glue .

Ink supply system

Using white ink and clear varnish, it has rich expressive power and fulfills various needs.
An additional spray print head can be added to realize the application of bronzing varnish and direct glue

Applications of

UV DTF Printer

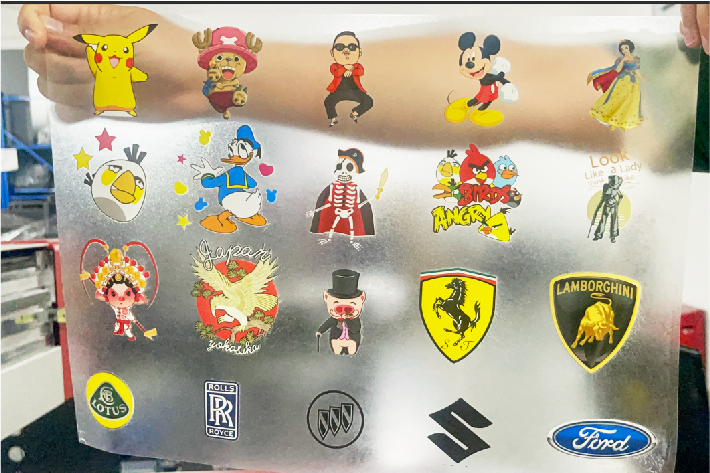

Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer,and works well on various materials,such as plastic,glass,metal,ceramics,leather,wood,and other soft or hard materials.

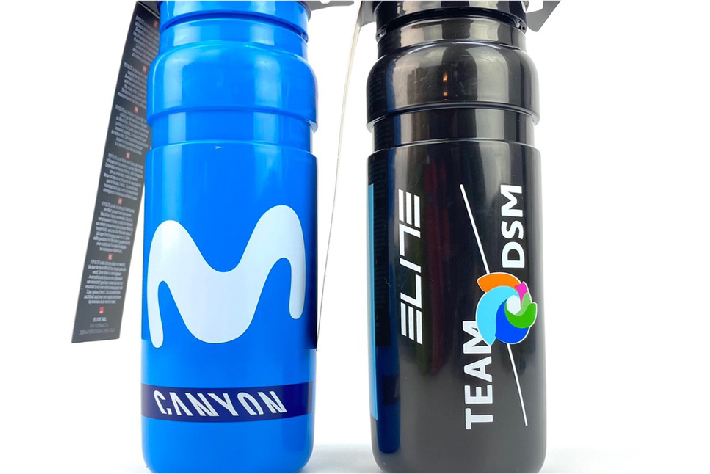

Plastic Glass

Ceramics Metal
Leather Glass stickers
Wood Packibg box
and other soft or hard materials.......

Applications Of Flatbed UV Printer

PVC Card
Gift Box

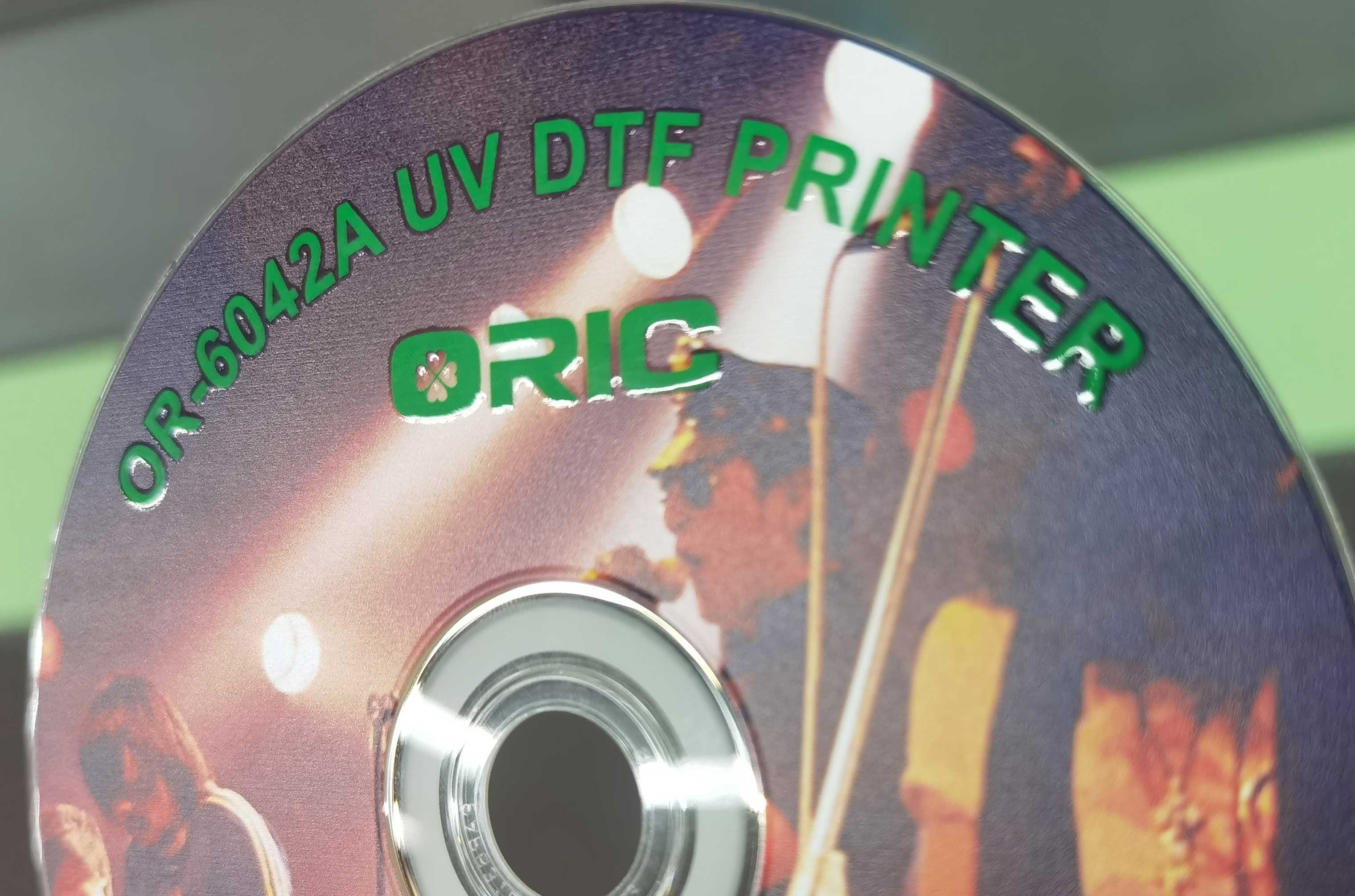

CD CARD

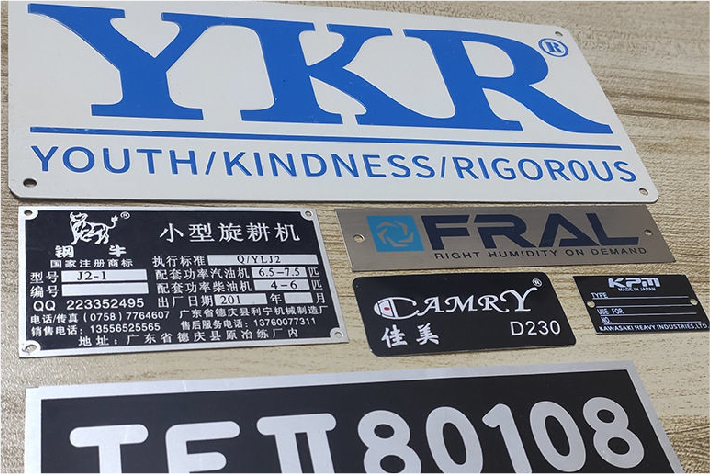

Metal
Ceramics
Glass
Stainless steel
PVC Board

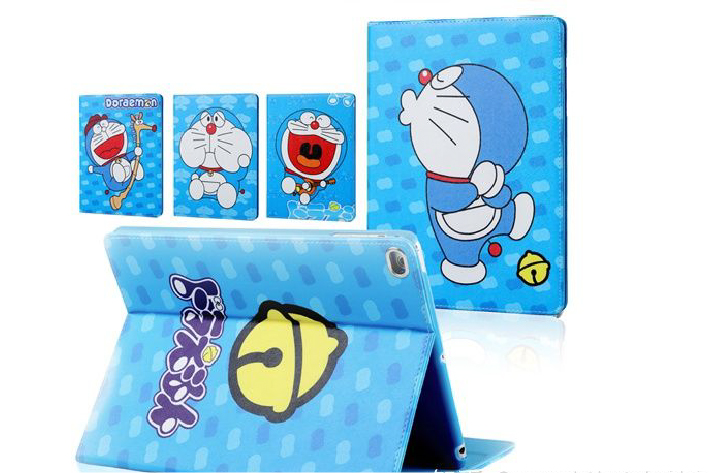

Leather
Acrylic crystal
Soft silicone
PET film

Additional Value

01

Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.

02

Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.

03

Inkjet Printer Starter Kit

Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.

04

Dealer’s Team Training

Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

ORIC factory is a digital inkjet printing equipment manufacturer and solution provider For UV（Roll-roll/Hybird/Flatbed）/ Sublimatoin / ECO Solvent / Solvent / DTF / UV DTF / Texture Painting
