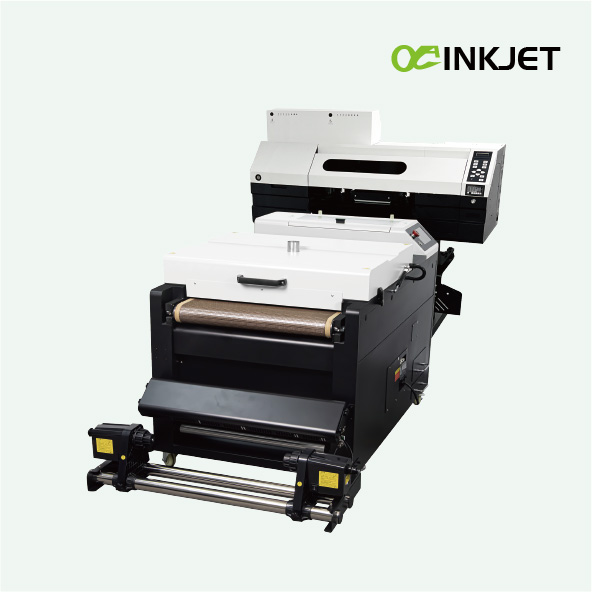

A-6202/6203/6204 AINKJET DTF SUPER

Direct to Film Comprehensive Solution With Belt System

Parameter
Print Head: 2/3/4 Print Heads Optional (i3200-A1)
Max Print Size: 620mm
Colors : CMYK+W / CMYKFyFm + W(3H)
Belt Systems Power Shaker Machine

Feature
Digital PET Film Printing Machine with Powder Shaking integrates vinyl powder coating and drying into one machine. When the film/vinyl is dried out, it can be used to transfer print onto the garment.



Availability:
Inquiry Add to Basket

PDF Export

Printer Heads

V

Epson Inkjet Head - i3200-A1

The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers

Product Specifications:
Product name EPSON i3200-A1
Ink Type Aqueous
Type PrecisionCore MicroTFP printhead
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)

Technical Specifications

T-shirt Digital Heat Transfer Printing Machine
Model
A-6202/6203/6204
Print Head
2/3/4  Print Heads Optional (i3200-A1)
Printing Technology
Piezoelectric Inkjet
Acceptable Media Width 620 mm
Thickness Maximum 39 mil(1 mm)
Printing Width
600 mm
Ink Cartridges Type Transfer Pigment Ink
Capacity Continual Ink Supply System ( 220ML )
Color CMYK+W   / CMYKFyFm + W(3H)
Applicable Medium
Transfer film
Color Manage
ICC or density curve
Media Heating System
Powder & color fixing machine
Interface
RJ-45/LAN
RIP Software
Main top
Power Supply
50HZ/60HZ,220V/110V/10A
Environment Temperature 10℃ to 28℃
Humidity 40% to 70%
Printer Dimensions(With Stand)
L1620mm*W620mm*H1590mm
Packing Dimensions
L1700mm*W750MM*H760mm
Weight
G.W : 230kg N.W :180kg
Shaking Powder and Color Fix Machine
Media Width 0-600mm
Applicable Medium Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control Powder shake control, powder control, powder direction and volume control
Heating & Drying Function The front guide plate is heated, the upper drying and curing, and the single row cold air cooling function
Material Transfer Mode Mesh belt conveyor, belt guide type
Rewind Function Automatic induction winding
Electrical Parameters Rated Voltage: 220V            Rated Current: 21A
Rated Power: 4.7KW          Power Consumption: 3KW-4.7KW
Size & Weight Machine Size/Weight：1895*912*992mm/ 200KG
Packing Size/Weight：1600*1130*1113mm/ 250KG



Features

资源 164x

Tension take-up, ensure more stable film feeding


资源 174x

White ink shaking device, improve the fluidity of ink

资源 114x

THK high-precision mute rail

资源 124x

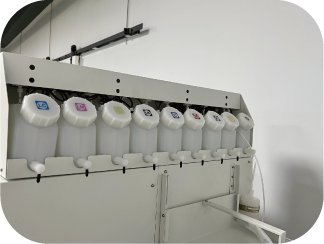

Stable bulk system ensures amazing printing speed

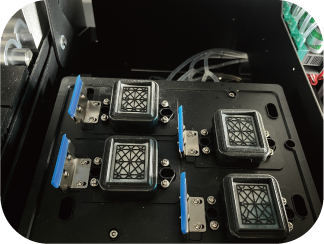

资源 134x

Automatic moisturizing function to extend the life of the heads


资源 144x

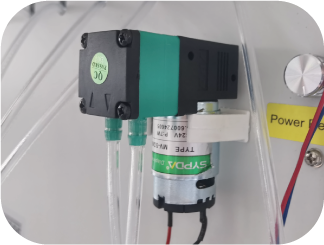

White ink circulation improves the fluidity of ink





资源 34x

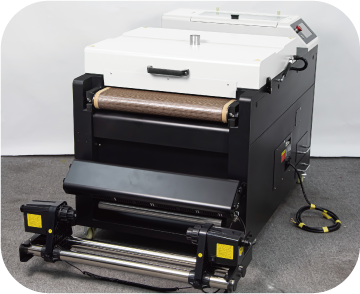

Upgrade the appearance

Compared with the old one have carried out omprehensive upgrade packaging and transportation, 40 feet cabinet can hold 28 sets, 20 feet cabinet can hold 12 sets. he new packaging design also solves the problems of two overlapping difficulties encountered in the past, such as the deformation of the caster top of the forklift.

资源 44x

Upgrade the operation interface

Upgrade to smart color screen with new screen design Simplify the tedious operation in the past.

Add screen startup animation (can be customized according to customer requirements)Support control interface customization.Remote software upgrade is supported.


资源 54x

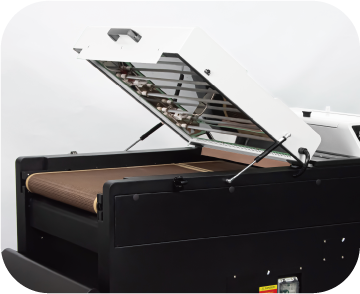

Upgrade the drying tunnel

The new machine increases the baking stroke, increases the tunnel length to 700mm(old one is 650MM) and increases the number of lamps to 5 (old one is 4). The new design allows the material to be more fully heated, so that the release film is not deformed, and the oil return phenomenon is prevented, so that the pattern is presented in the most perfect state

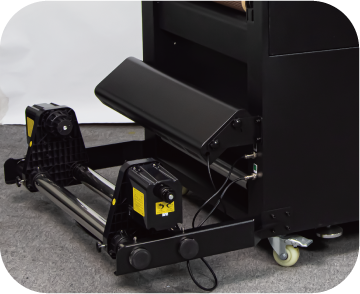

资源 64x

Upgrade the volume

On the new machine we have added a winding system to

make the material tighter and neater.


资源 74x

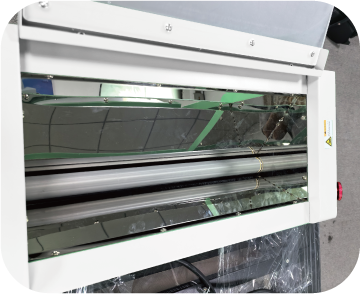

Dust to upgrade

The new design solves the previous coarse powder powder slow powder fine powder powder too fast, damp powder hole blocking and other problems.

资源 84x

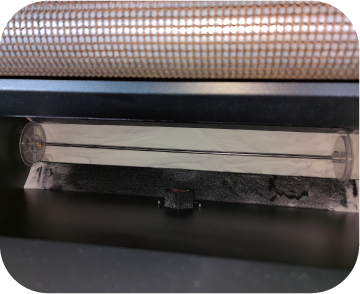

Powder control structure

Using a new powder control structure design, instead of the previous floating structure, the use of two sides of the baffle structure, intelligent powder mode within a unit time interval of powder can effectively extend the life of the powder motor, so that the amount of powder can be better controlled the new structure can effectively block the powder loss on both sides of the material can maximize the utilization of powder, At the same time, it also reduces the number of times that workers recycle the powder, and in our test, the machine can continue to work for 8 hours with a full box of powder, during which the residual powder is only cleaned once. Greatly reduced labor, greatly reduced powder waste.


Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique .

 T-shirt                       Denim/Jeans
 Canvas                      Hoodies
 Backpacks.               Lanyards
Shoes                         Gift Bags
Baseball Caps            Fabric Gift Boxes
 Sweaters and more......

Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
