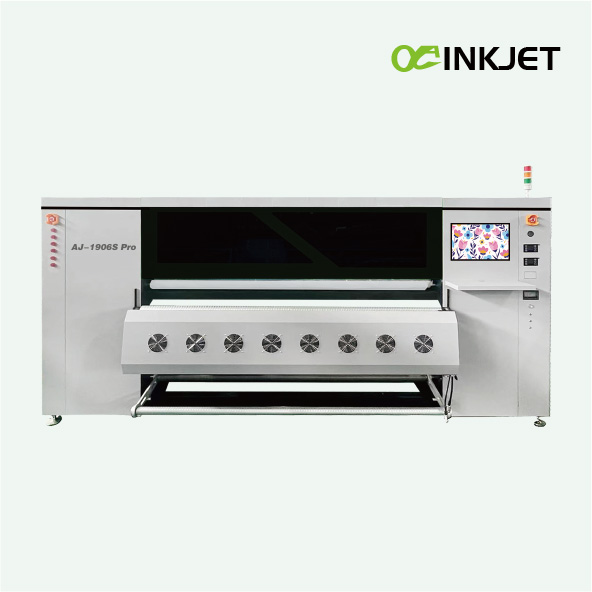

A-1906STX PRO Sublimation Printer With 6 S3200 Print Heads

Parameter
Print Head: 6 s3200 Print Heads
Max Print Size: 74.8 in.(1900 mm)
Colors : CMYK LC LM

Feature
High speed heavy wall panel sublimation

  • A-1906STX PRO

Availability:

PDF Export

Printer Heads

微信截图_20240523092244

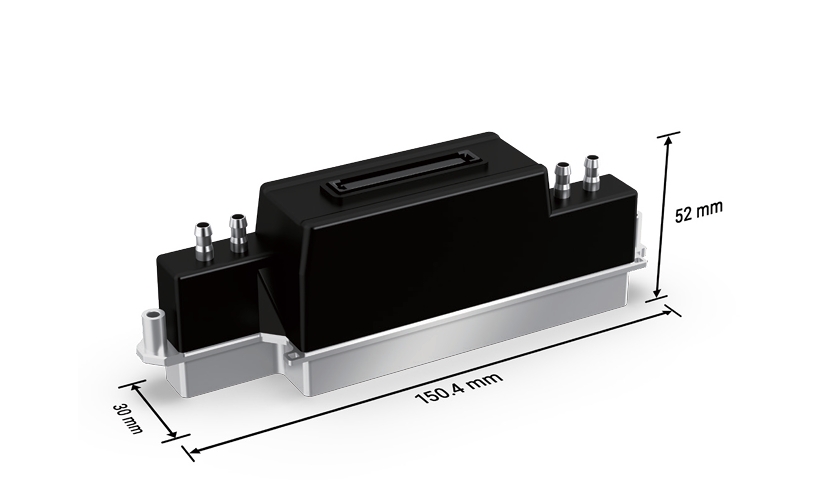

Product Specifications:
Product name S3200
Ink Type UV/ Eco Solven
Type PrecisionCore MicroTFP printhea
WidthxDepthxHeight 150.4 × 30 × 52 mm
Weight 235 g
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 2 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 2 colours
Jetting frequency 48 kHz (Single)
24 kHz (Multi)

* 1.9m 6*S3200 Print Heads Speed

360x600dpi - 1pass              380 m²/h


Technical Specifications


Technical Specifications
Model A-1906STX PRO
Print Head 6 S3200 Print Heads
Droplet Size 3.5pl
Printing Width 74.8 in.(1900 mm)
Printing Speed 1 pass(300x600dpi): 380 sqm/h   2 pass(600x600dpi): 240 sqm/h
Ink Cartridges Type Dye Sublimation Ink
Supply Siphon + Automatic Ink Replenishment
Color CMYK LC LM
Print Media Heat Transfer Paper
Print media control Air Shaft Automatic Take-up
Dryer External Automatic Air Heat Integrated Dryer
Moisturizing unit Automatic Cleaning and Moisturizing Integrated Captop
RIP Software RIIN Beidou Textile Version,Maintop6.0、photoprint、ONYX、NeoStampa、PrintFactory etc.
File Format Supported JPG / TIFF / PDF, etc
Computer Configuration Operating System win7 64 bit / win10 64 bit
Hardware Requirements CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g,Graphics Card: ATI display 4G memory, Motherboard: ASUS, Gigabyte
Data transmission USB3.0
Power requirement Input Voltage AC 220 V± 5%, 16A, 50 HZ± 1
Printer 2500W
Drying unit power Maximum 8kw
Dimensions(with stand)

140(W)x64(D)x70(H) in.    (3550(W)x1629(D)x1783(H) mm

Package Dimensions

137.7(W)x29.5(D)x84.6(H) in.   3500(W)x750(D)x2150(H)mm

Working Environment Temperature 15-32 degrees C, Humidity: relative humidity: 40-70 (non condensing)
Standard Components External Automatic Air Heat Integrated Dryer, Low Ink Alarm System, Air Shaft Media Loading and Take-up, and Automatic Moisturizing and Cleaning Init
