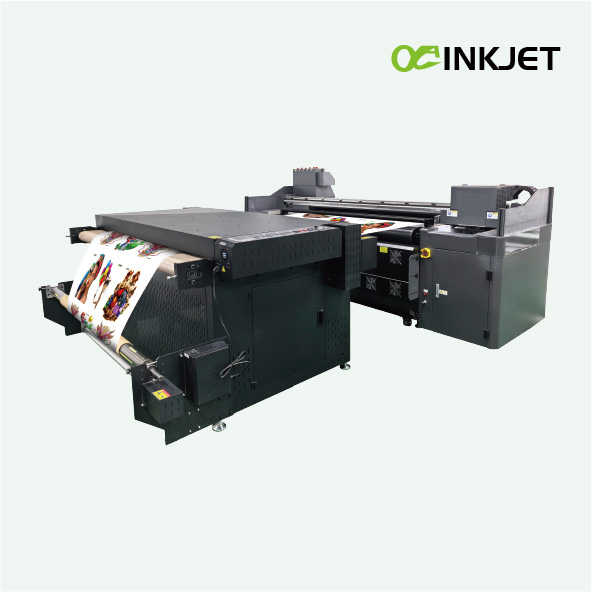

AJ-1800HE Latex Printer 1.8m Latex Belt System (3/4*EPSON I3200-A1)

Parameter
Print Head: 3/4 I3200-A1 Print Heads
Max Print Size: 1800mm
Colors : CMYK

Feature
1.8m Latex Belt System (3/4*EPSON I3200-A1)

  • AJ-1800HE

Availability:

PDF Export

Printer Heads

喷头2Epson Inkjet Head - i3200-A1

The Epson authorized i3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution.PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.


Product Specifications:
Product name EPSON i3200-A1
Ink Type Dye Sublimation Ink
Type PrecisionCore MicroTFP print head
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)



Technical Specifications


Technical Specifications
Model AJ-1800HE
Print Head 3/4 I3200-A1 Print Heads
Printing Technology Roll to roll
Acceptable Media Width:1800mm
Thickness:Maximum 1mm
Printing Width 1800mm
Ink Water based latex ink
Resolution 600dpi/900dpi/1200dpi/1800dpi/2400dpi
Printing Speed 3Heads-(OP+2C):720*1200dpi 4pass:24 sqm/h
3Heads-(OP+2C):720*1800dpi 6pass:18 sqm/h
Colors CMYK
RIP ONYX / Caldera
Power Operating mode:20KW      Sleep mode :600W
Dimensions Size 3290(W)*1350(D)*1530(H)mm
Drying size 2260(W)*1750(D)*1110(H)mm
Weight 1550KG
Power Supply 380V±5%,50/60 HZ.40A
Connector USB 3.0
Environment Temperature:18℃ -26 ℃,Humidity:30%-75%(RH)
Accessories Support, receiving and discharging machine, cold air drying system, large ink supply system, etc


Feature

资源 14x

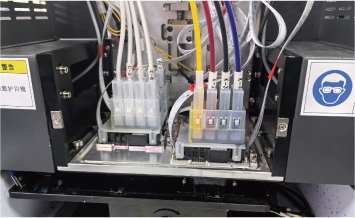

Automatic moisturizing ink holder

Prevent ink clogging the nozzle,

and regularly moisturize the nozzle

to keep it clean and moist to keep

the equipment in optimal

working condition.


资源 24x

Secondary cartridge

The use of two-stage ink cartridge

system ensures stable ink output

of inkjet system and increases printing performance.

资源 34x

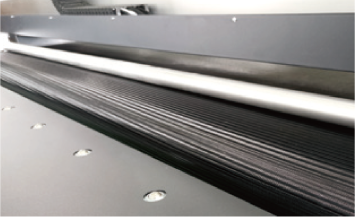

High strength transfer tape guide

device Special high strength low

tensile belt, no deviation,

no deformation, long service life

资源 44x

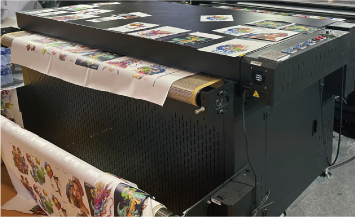

Rear drying device

Multi-stage adjustable drying,

synchronous drying, that is, dry,

no post-processing

资源 54x

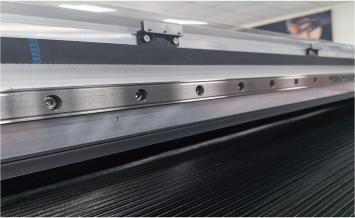

THK Silent guide rail

Effectively reduce the noise

of the working environment,

improve the printing accuracy

and stability of the car,

and more accurate positioning

资源 64x

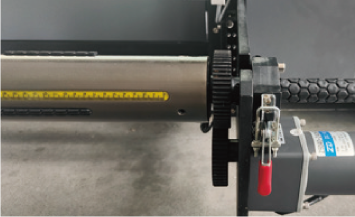

Front and rear inflatable shaft retracting

and discharging system

More convenient retracting structure,

can meet a variety of different thickness

specifications of materials

资源 84x

Achieving amazing colors

Quick dry and no need laminating, highly improves the color performance. Sharpen the quality of any

substrate with the vibrant color gamut of Latex Inks and a thin ink layer preserving media feel.


Outdoor thick scratch resistance

The latex composition in the ink is heated and dried to lock the pigment on the surface of the material,

avoiding the oxidation of the pigment, thus preserving the color for a longer time and effectively

preventing scratching.


Designed with the environment in mind

In addition to delivering outstanding image quality, consistency, and durability, water-based Latex Inks

provide an attractive environmental protection for both printing service providers and customers.


Application

资源 74xAdded optimizer output ,can be printed on uncoated materials, making the output more delicate,

the colors more firm, and the picture saved longer.Can be directly printed on wallpaper,

wallcovering, uncoated PVC & PET materials


Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts,and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
